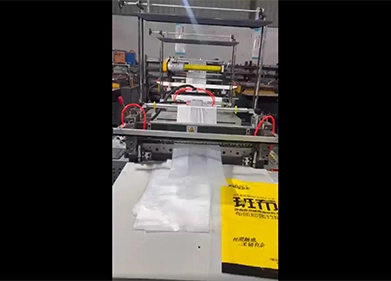

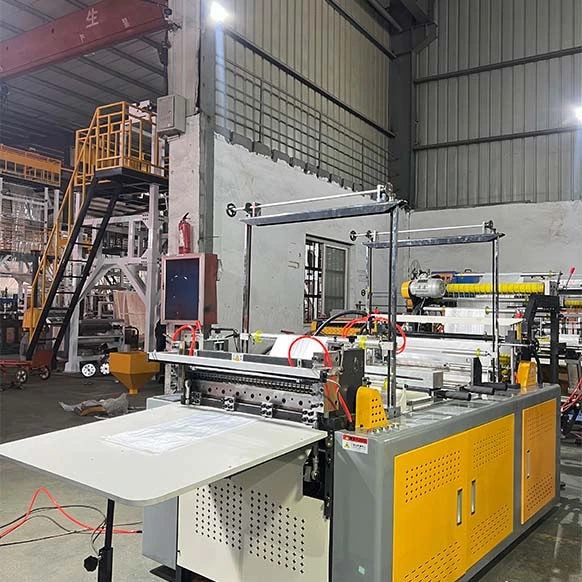

Tissue bag making machine is a machine specially used for making toilet paper bag. The length and width of the bag can be adjusted and customized. Two circular holes are made on the bag for convenient use and carrying.
The bag making machine is a machine that integrates multiple functions, and its role is mainly to cut, shape, seal, bag making and other processes, so as to make bags of various specifications and shapes. Bag making machine is widely used in the production and packaging of bagged products in food, medicine, cosmetics, toys, department stores and other industries, providing important technical support for the production and packaging work of related industries.
| Model Number | GL- 1300 |
| Solid State Relay | Import Taiwan China Yangming |
| Button Switch | Import of the French Schneider |
| Midget Relay | Import of Japan's Omron |
| Any Power-generating or Power-driven Machine | 1.5KW., Shanghai Lip |
| Frequency Conversion | 1.5KW. Driver |
| Computer | Huihuang-HHGKLCD Touch Screen |
| Service Platform | Aluminum Alloy Balance Adjustment Structure, Smooth Smooth Surface |
| Hot Knife | 1300 mm Pure Copper Knife Flat Mouth Double Hot Knife Stainless Steel Heating |
| Slicer | 1300mm Double-alloy Steel Knife |
| Feed Motor | 400w ×1 |
| Stepper Motor | 350 A, Jiangsu Province |
| Air Switch | Is tai |
| Before and After the Glue Stick | Tough, Wear-resistant and High-temperature Silicone-resistant Silica Gel |
| Machine Keel | Welding of 1500 mm Slot Steel |
| Cut Width | 1200 mm |
| Longmen Perforator | 1 PCS |
| Cut Width | valid 300*1mm |
| Seal Cut Length | 15-1500mm |
| Bag Making Speed | 80 -100 pcs/min ( Single-channel speed) |
| Machine Weight | About 750KG |
| Body Size | Approximately ( length, width and height)3000mm×1500mm×1700mm |
| Automatic follow-color-and photoelectric-eye | 1box |
| Spring | 40 Roots |
| Oil Gun | 1box |
| Frequency Conversion Instruction Manual | 1box |
| Computer Instructions | 1box |
| Inside the hexagonal | Approximately ( length, width and height) 2800mm 1300mm 1700mm |
| Computer hot seal cold cutting bag machine is mainly used for printed, flat pockets; the main motor uses frequency conversion motor, energy saving and production efficiency, speed control more freely. Good performance of the color mark tracking instrument, make the sealing length more accurate, less error. Using an advanced computer, the length adjustment is convenient and accurate. | |
| What must be offered by user | Fixing the place of machine installation |
| Air compressor etc | |
